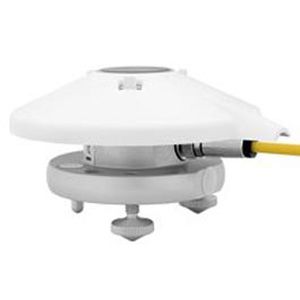

Pyrgeometer

The pyrgeometer is a sensor of atmospheric radiation.
It is a hemispherical radiometer used to measure the incident infrared radiative flux on the surface of the Earth in all directions (solid angle of 2) and due to long wave radiation from the atmosphere or that emitted and reflected by the ground.

Mechanical characteristics:
Dimensions : 110mm (W) x 68.3mm (H), 30mm (dome width)
Weight : 600g

Main features:
Spectral range : 4500 to 42000 nm
Measurement range : -250 to +250 W/m²
Sensitivity : 5 to 15 V W-1 m2
Temperature range : -40°C to +80°C
Temperature dependence : <5% (-10°C to +40°C)
Response time : <18s
Field of vision : 150°
Non-linearity : <1%
