Shielding covers and belts for PCB

Materials
Tin-plated steel, nickel silver, copper, stainless steel
MANUFACTURING PROCESS
Cutting and folding using press, etching, and stamping processes.
Prototyping
Soft tooling for the validation stage.
Options
Multi-walls shielding, perforated sheets for aerations, assembly with a thermal interface or an absorber
Packaging

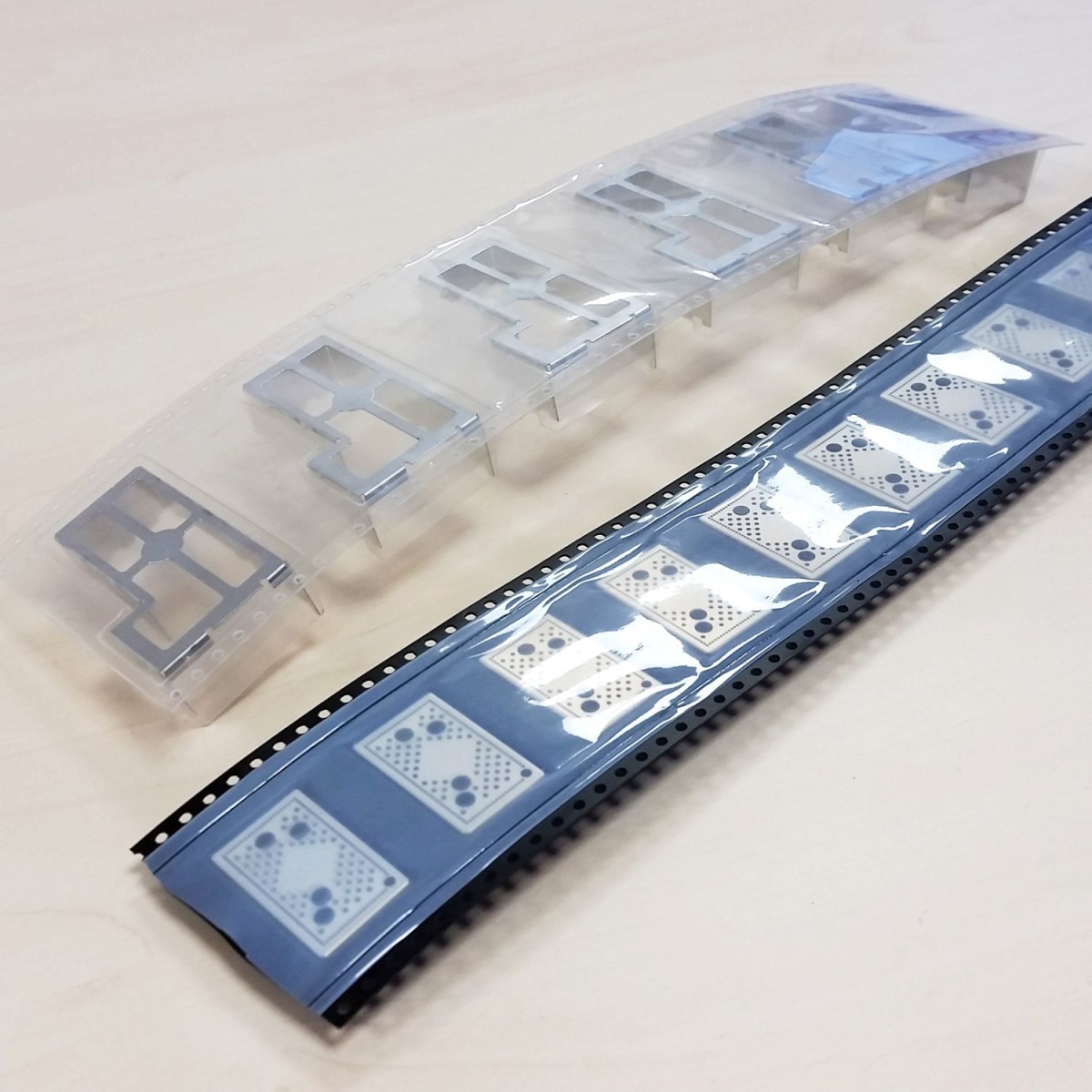

Thermoformed tray or rolls for pick and place (automation).

Description

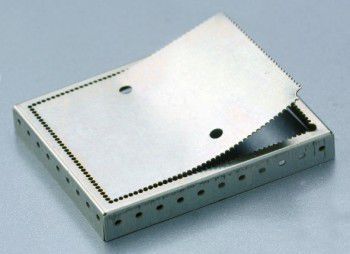

Shielding covers for printed circuit boards (PCBs) ensure an isolation of components on the PCBs.

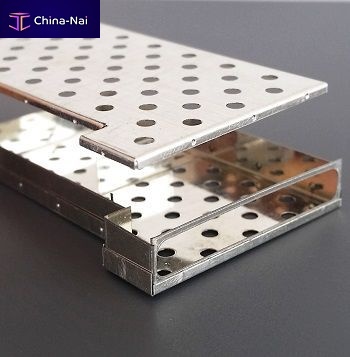

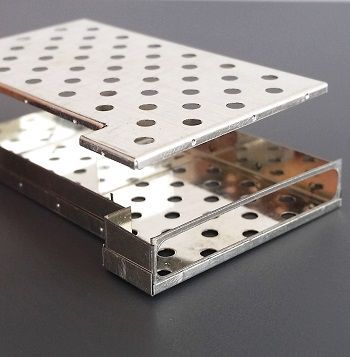

The cover is assembled on the PCB using belt or clips. It ensures EMI shielding with faraday effect.

The covers are placed above one or several components to provide a complete electromagnetic shielding.

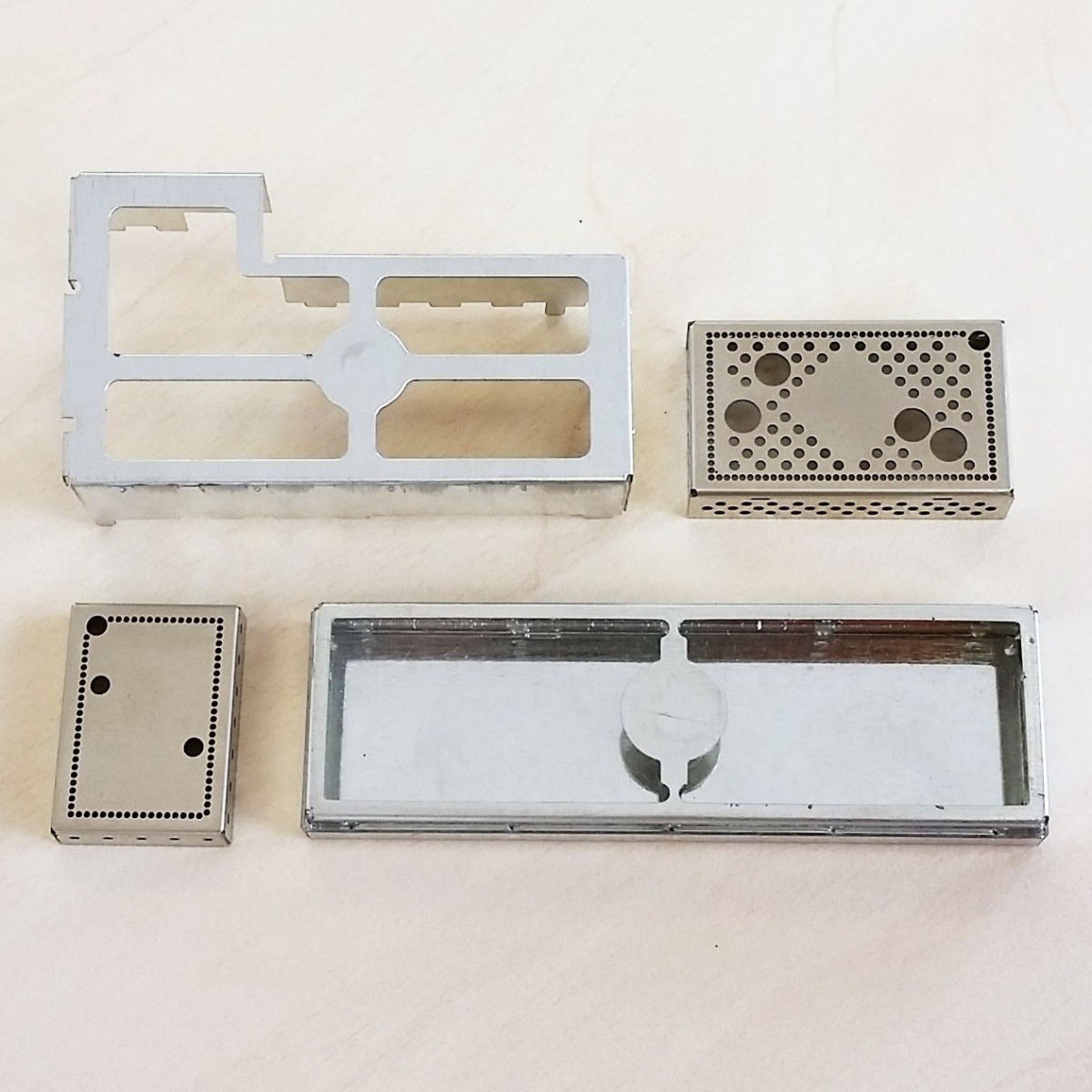

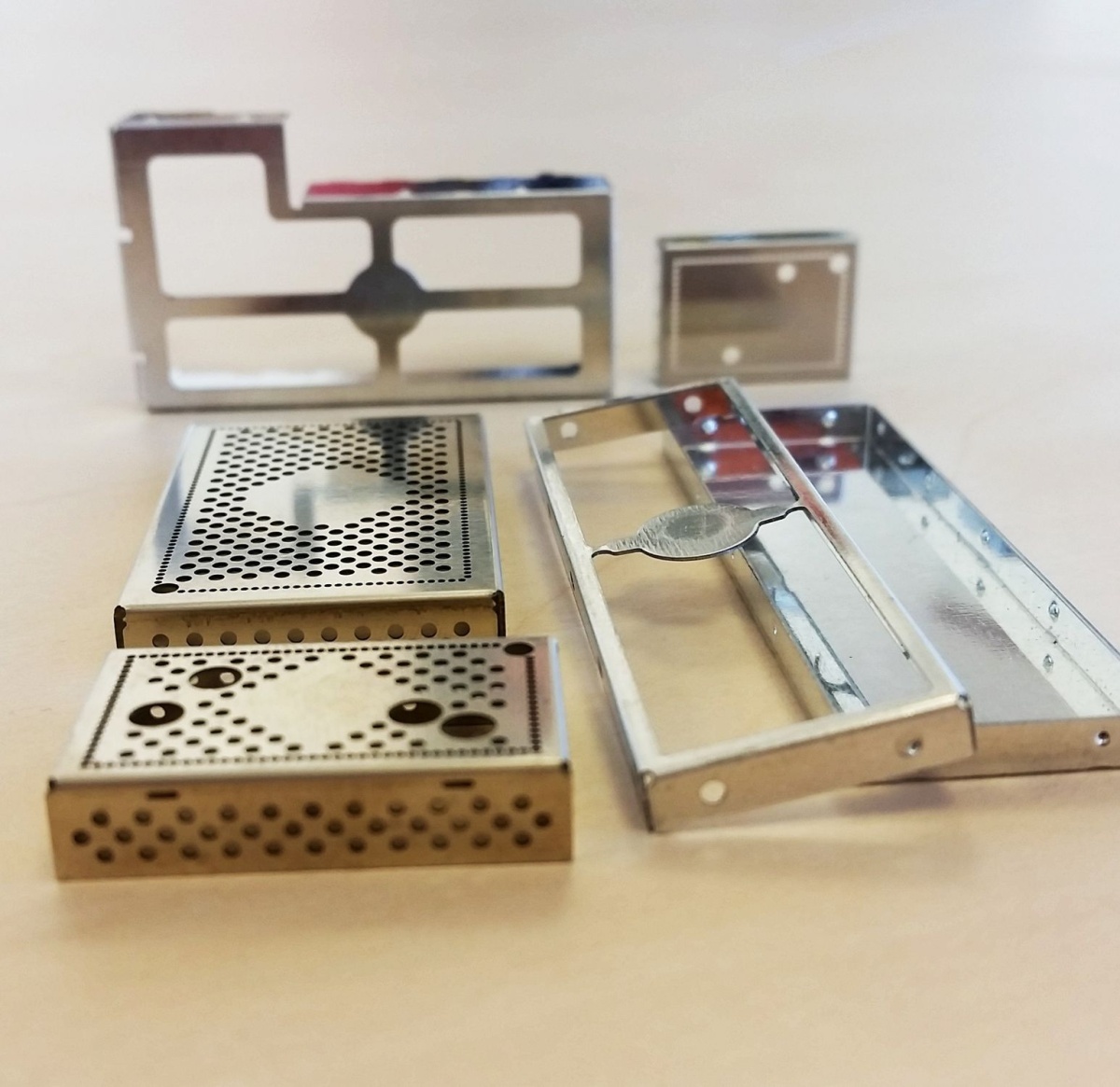

Compelma offers a large range of standard covers or set of covers/frames.

We can also customize parts to meet your specifications (material, dimensions, form and surface treatment).
